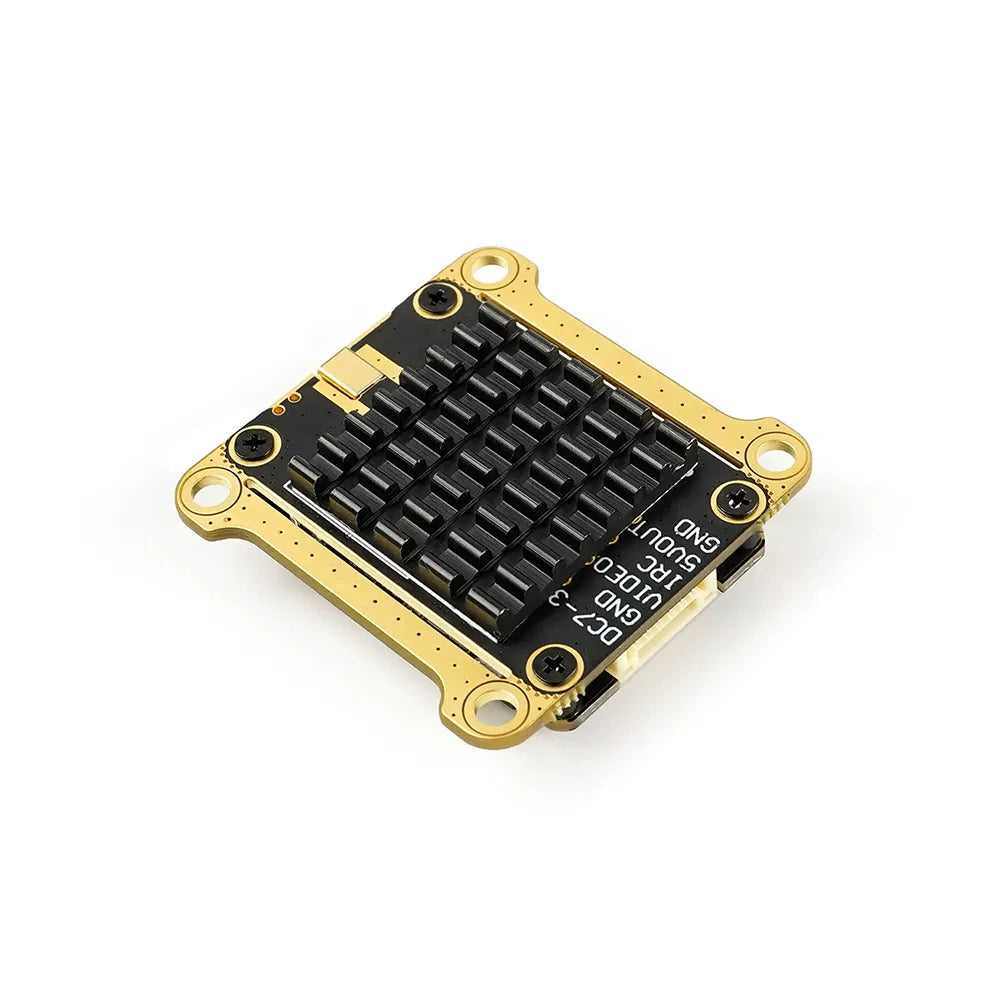

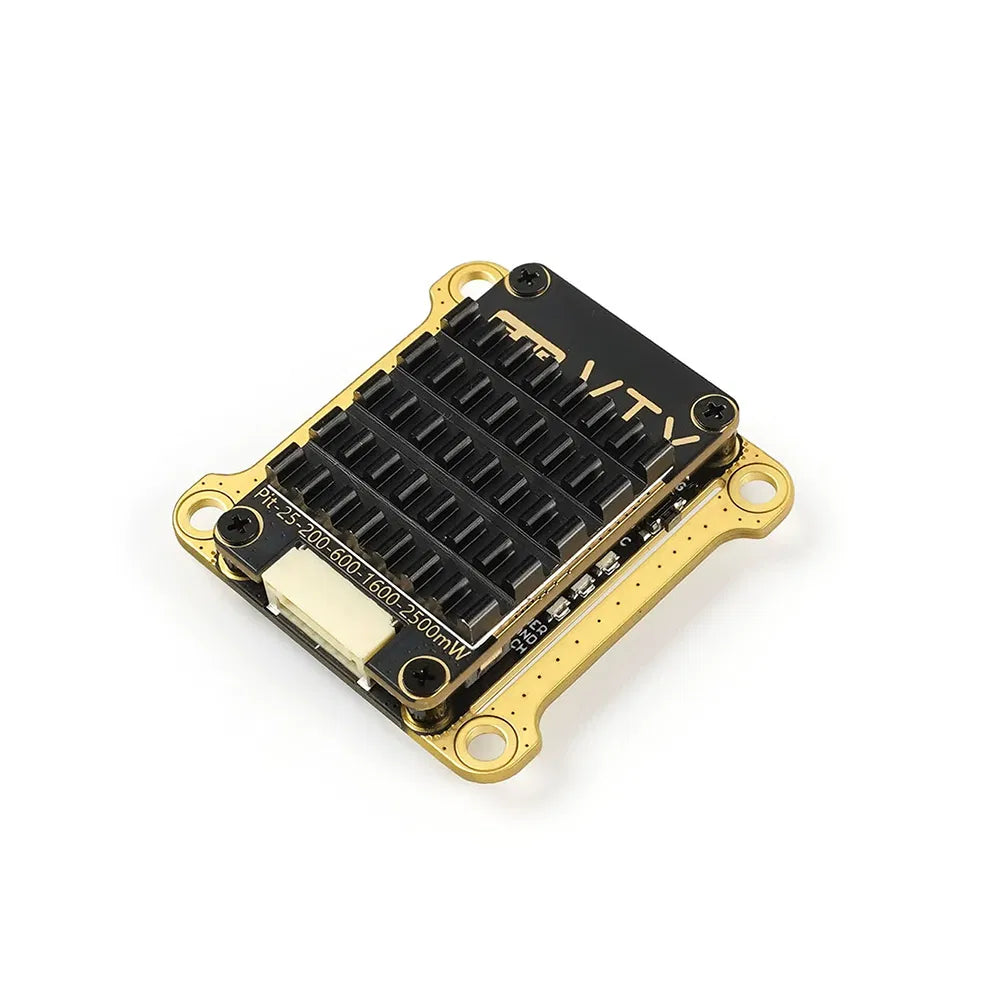

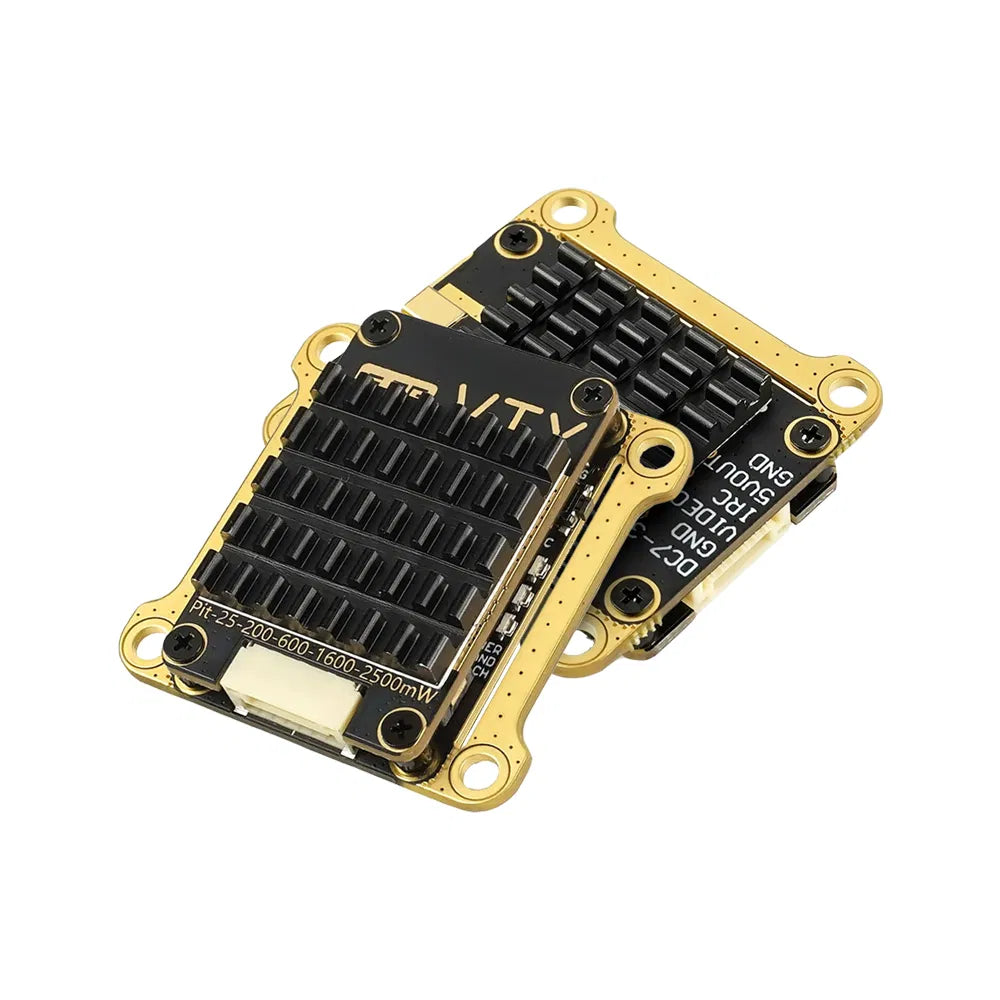

Geprc Rad Vtx 5.8g 2.5W Pitmode 2500MW Output Long Distance Transmitter Irc Tramp Support Microphone for FPV Racing Drone

Specification

Model: RAD VTX 5.8G 2.5W
Input voltage: DC7-36V (2-8S battery)
Output voltage: 5V@600mA
Input impedance: 75Ω
Protocol: IRC Tramp
Antenna interface: MMCX
Cable interface: GH 1.25-6P
Output power: PitMode/25mW/200mW/600mW/1600mW/2500mW
Frequency group: General area frequency group (40CH), US FCC frequency group (37CH)
European EU frequency group (26CH)
Video format: PAL/NTSC
Microphone: Built-in microphone
Mounting hole: 30.5mm x 30.5mm (M3)

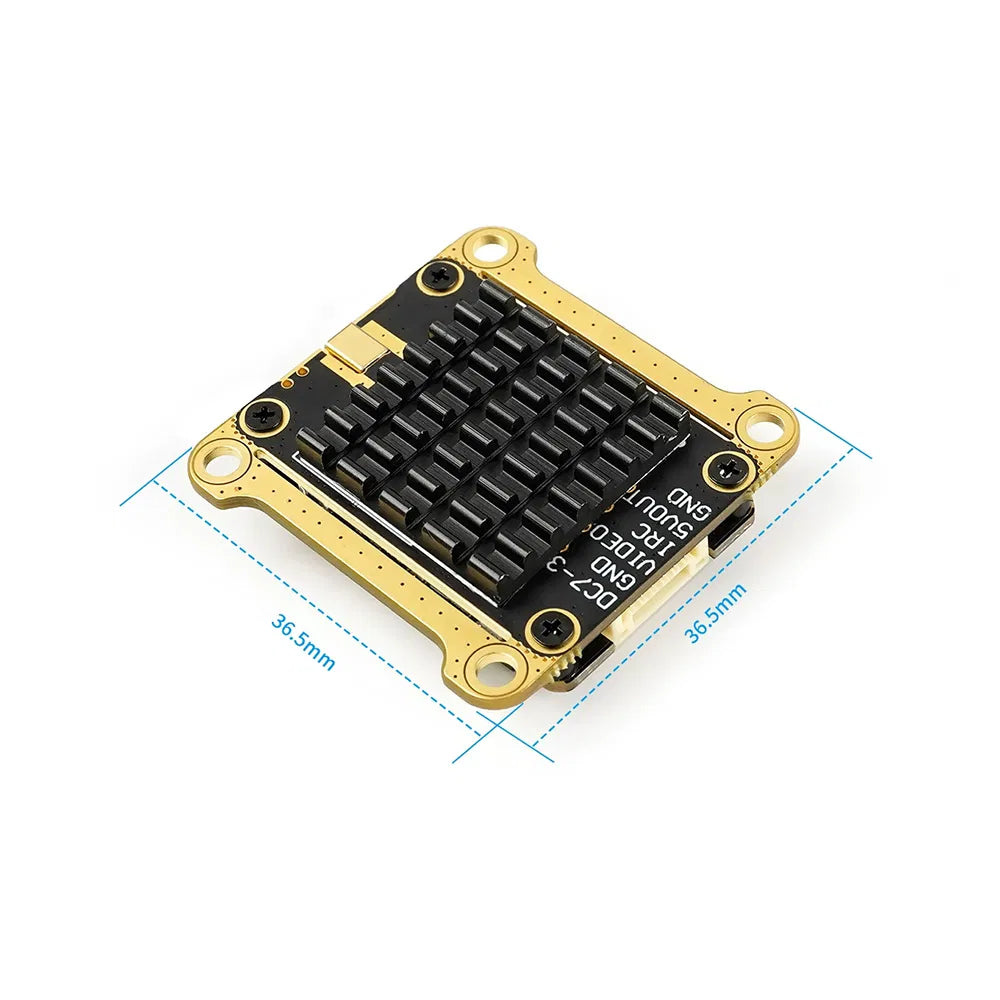

Dimensions: 36.5mm x 36.5mm x 12mm

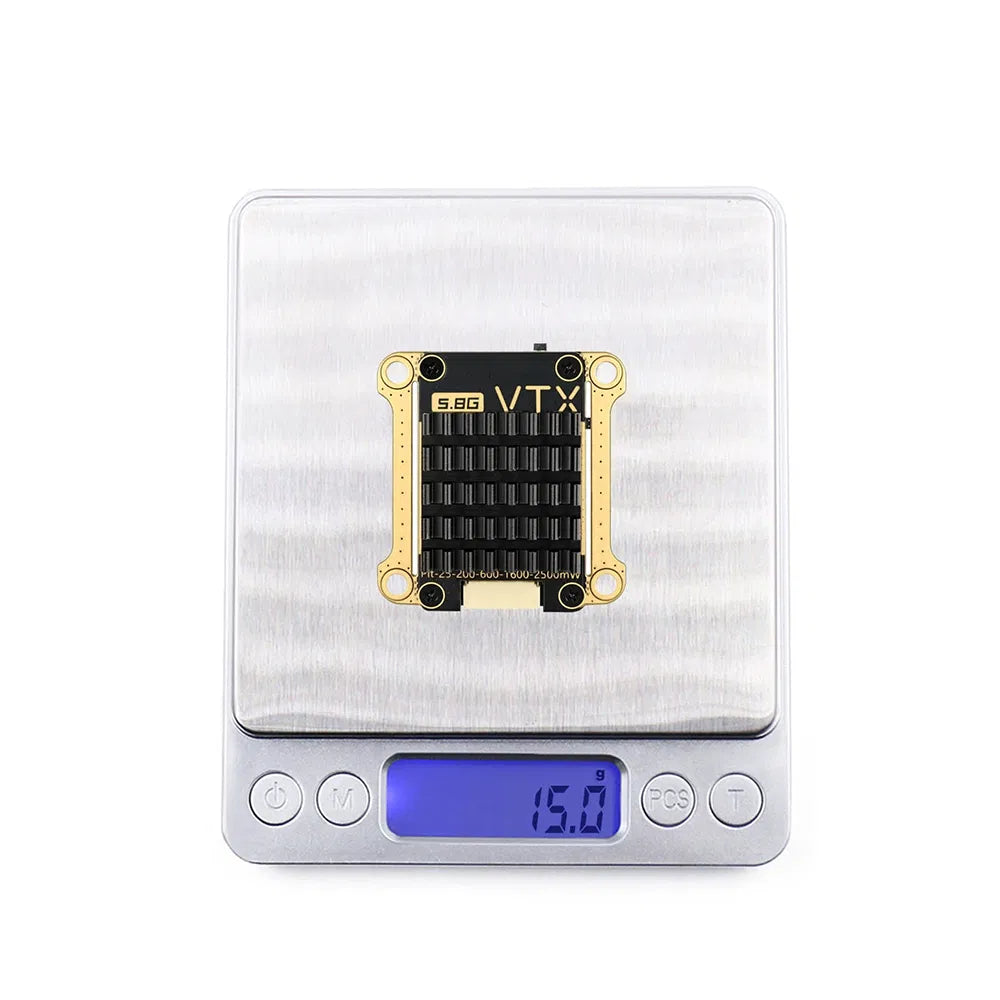

Weight: 15g (excluding wire) Specifications

Features
1. 2500mW high power, stable operation, suitable for long-distance flight.
2. The interference-free pull-distance test at the seaside is about 10KM.
3. Six-speed adjustable power PitMode/25mW/200mW/600mW/1600mW/2500mW.
4. Good double-layer board heat dissipation structure, separates the power
supply BEC from the main control, reduces interference and shields interference.
5. Temperature control protection function to prevent high temperature burning.
6. Wide voltage input, supports 7-36V voltage input.
7. With 3 regional frequency groups to meet the needs of various regions.
8. Image transmission control protocol IRC Tramp, supports OSD parameter adjustment. 9.
Image transmission onboard microphone, the sound of the aircraft is transmitted to the
ground in real time.
10. Two function buttons, three indicator lights, easy to operate.
11. The mounting hole supports 30.5mmx 30.5mm.

Packing list

1 x GEPRC RAD VTX 5.8G 2.5W
1 x Copper tube antenna MMCX 72mm
1 x GH 1.25*6P connecting cable 150cm
1 x MMCX to SMA (female) connector
1 x matching screw package
