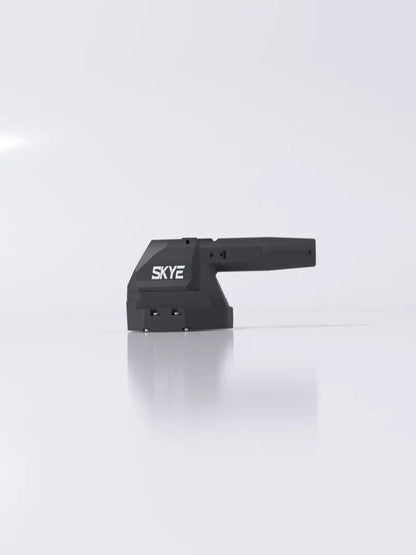

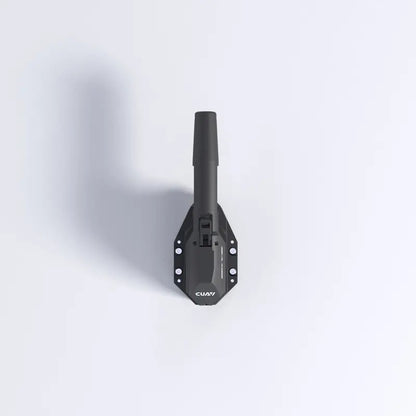

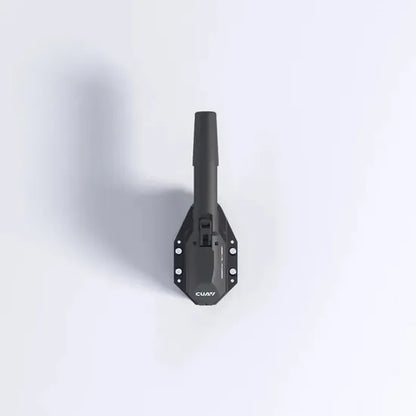

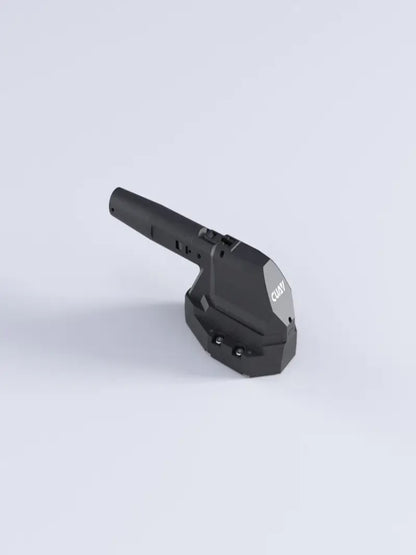

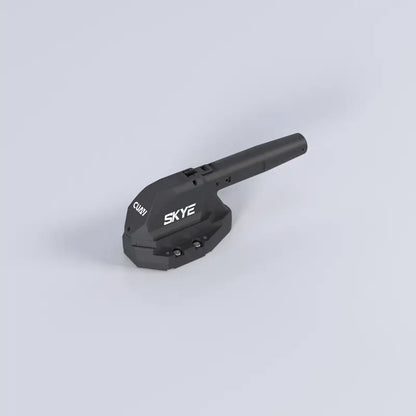

Cuav Skye Intelligent Airspeed Sensor
Product Description
SKYE Airspeed sensor has an automatic heated pitot tube mechanism. Heated pitot airspeed sensors are highly demanded in DIY UAVs
by using Pixhawk flight controllers, it makes the drones to be more reliable and improve the robustness of the avionics systems.
By using SKYE heated airspeed sensor you can have a deicing feature and reduce the probability of measurement error. SKYE sensor
has a Dual Temperature Control System to do the airspeed compensation automatically hence significantly improving the safety level
of the drone and making it operational in harsh environments. It can also pass the IP44 protection standard. In the end, by
processing collected data with a highly integrated STM32F4 processor and industrial-level CAN interface you can easily use it with
most Pixhawk flight controllers or any DroneCAN-supported flight controls.
SKYE Airspeed sensor Features:
Built-in STM32F4 processor
DroneCAN Protocol
Dual temperature compensation system
Intelligent de-icing
IP44 protection class
Automatic drainage design
* Main Parameter
Processor:STM32F4
Protocol:DroneCAN
Pitot tube temperature control type:Resistance heating
Airspeed sensor:MS5525
* Sensor performance
Airspeed measurement range:±500km/h
Airspeed accuracy:±0.69Pa
Total Error Band:±2.5%FS
Temperature measurement range:-15ºC-150ºC
Humidity measurement range:0-100%
* Pysical characteristics
Pitot tube heating power:35W
DC IN:Default 12-36V
Operating Temperature:-20ºC±75ºC
Size:82.5x30.4x28.2mm
Weight:22g
Protection Level:IP44(To be installed on request)
